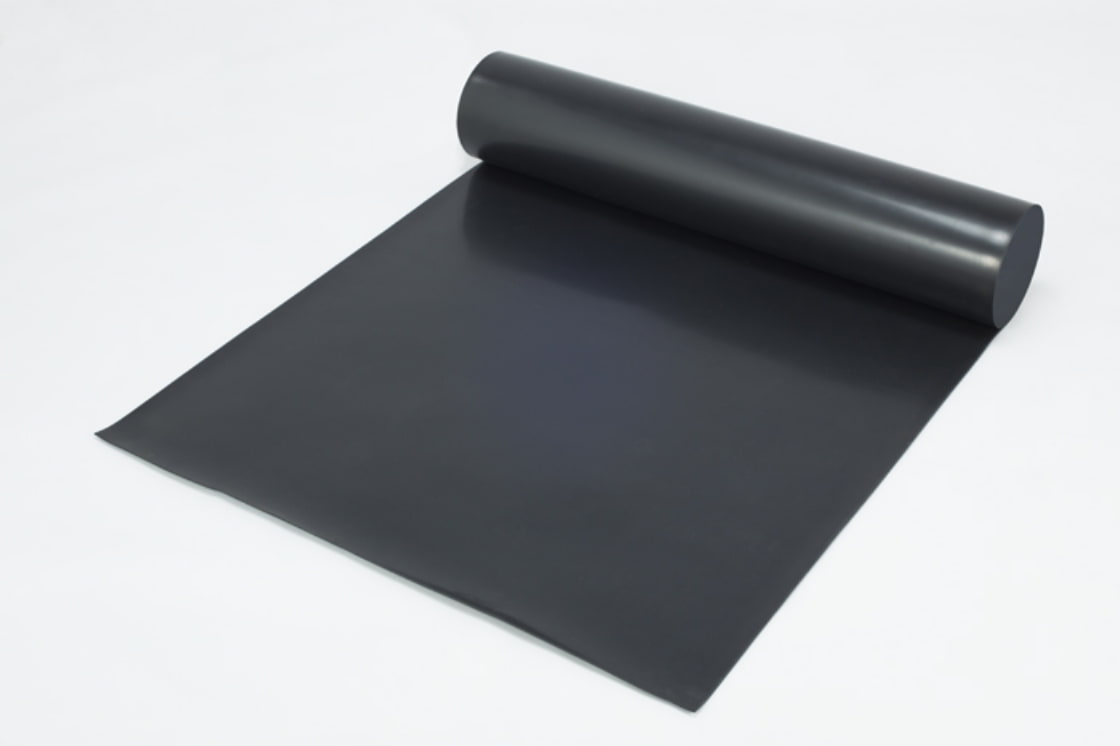

Speciality elastomer FR Sheet (Fluoro rubber)
Features
- ・Excels in chemical, oil, and solvent resistance.
- ・Excels in weather and ozone resistance.
- ・Excels in heat aging resistance more than silicone rubber.
Applications
- ・Special packing material.
- ・Corrosive-resistant packing material.
- *Hardness measurement is revised to “After 3 seconds” according to JIS K 6253 (2006). However, generally, the conventional "measurement within 1 second" is to be the mainstream for nominal hardness, so this result is measured value and the measurement result after 3 seconds is shown in ().
| Function | ・ Heat Resistance ・ Ozone Resistance ・ Oil Resistance ・ Acid Resistance ・ Anti-Permeability to gas |
|---|
Properties: FR Sheet
| Item Name | Properties | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| General Properties | Heat-Resistant Aging 275°C×72h |
Oil Resistance 150°C×72h |
Comp- ression Set 150°C × 72h % |
||||||
| Hardness Type A |
Tensile Strength at Break MPa {kgf/cm2} |
Elongation at Break % |
Hardness Change Type A |
Change Rate of Tensile Strength % |
Change Rate of Elongation at Break % |
IRM903 | |||
| Volume Change % |
|||||||||
| TFB 8010 | 81(76) | 16.0{163} | 230 | +7 | -13 | -39 | -4 | 20 | |
| FR Sheet <HS80> | 78(75) | 10.5{107} | 360 | +5 | -53 | -51 | +3 | 47 | |
| TFB 6007 | 62(60) | 9.3 {94.9} | 320 | +4 | +13 | -15 | +7 | 12 | |
- JIS K 6250
- ●These items highlighted in this color are our standard products.
- ●TFB 8010 is not an electric isolating type.
- ●Please consult us about the thickness tolerance of TFB6007.
Aflas Rubber Sheet
(Aflas: Trade name of fluoro rubber of Asahi Glass Co., Ltd.)
Features
・Excels in inorganic chemical resistance. ・Excels in heat aging resistance. ・Excels in steam resistance.
Applications
・Packing material for steam ducting. ・Heat resistant and non-contaminating packing material.
Properties : Aflas Rubber Sheet
| Item Name | Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| General Properties | Heat-Resistant Aging 260°C×10day |
Oil Resistance 100°C×72h |
Comp- ression Set 150°C × 72h % |
Remarks | ||||||
| Hardness Type A |
Tensile Strength at Break MPa {kgf/cm2} |
Elongation at Break % |
Hardness Change Type A |
Change Rate of Tensile Strength % |
Change Rate of Elongation at Break % |
IRM903 | ||||
| Volume Change % |
||||||||||
| Aflas Rubber Sheet | 82 (75) | 17.6 {180} | 210 | 0 | -50 | -4 | +7 | 27 | Special order product | |
- JIS K 6250
•These products should not be incinerated wherever possible because harmful gas to humans might be generated if they are immoderately burned.
•The user is requested to confirm degree of discoloration and contamination by using sample in the case of use contacting with the other items.
•The life of these products at actual use are greatly affected by condition of the use. The user is requested to confirm it by using sample in the case of use under severe condition.
Please check here to find out the environmental compliance of this product.
●These descriptions can be altered for a reason of improvement without any notification.
●These descriptions shall be as of November 1, 2021.
