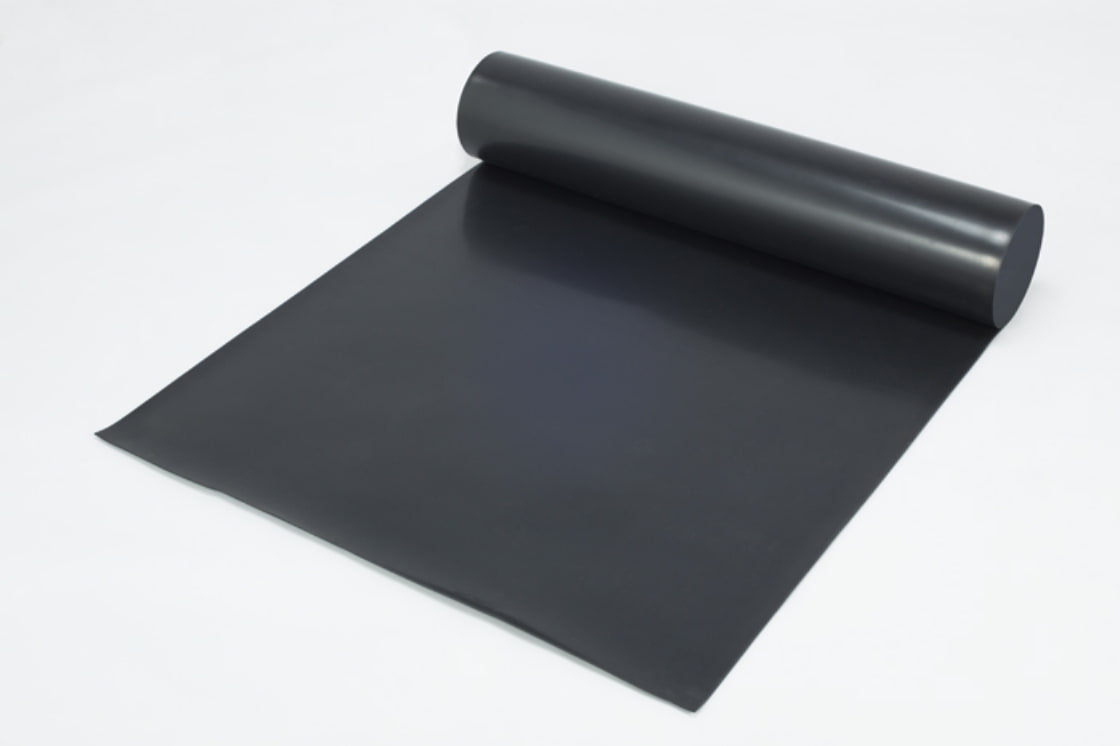

Cloth Inserted Rubber Sheet
【 Features 】
•Elongation can be suppressed to a small value by inserted cloth making it suited for seal packings of parts with the possibility of dimensional changes such as swelling caused by heat and chemicals.
•Furthermore, the thickness of the rubber between layers is a minimum of 1mm.
•Please confirm before use of these rubbers as rubbers for watertight retention.
*Penetration leakage might be caused at cloth part depending on the use condition in the case of use for waterproof packing.
【 One to several plies of the cloth of the table below is/are inserted between various rubber sheets in accordance with the specification of customers. 】
| Type | Item Name | Yarn Count (Warp×Weft) |
Thread Count (Warp×Weft per 5cm) |
Thickness mm |
Tensile Strength kgf/3cm |
Elongation % |
|---|---|---|---|---|---|---|
| Cotton | Thick texture 22C | 10 / 3×10 / 3 | 45×47 | 0.85 | 45 | 25 |
| 〃 | 〃 25C | 10 / 2×10 / 2 | 51×51 | 0.7 | 30 | 20 |
| Polyester | ― | 30 / 1×30 / 1 | 90×88 | 0.15 | 32.3 | 11 |
| Vinylon | ― | ― | 31×31 | 0.5 | 283 | 9 |
| Glass-Cloth | ― | ― | 84×64 | 0.18 | 164 | ― |
●These descriptions can be altered for a reason of improvement without any notification.
●These descriptions shall be as of December 1, 2013.
