Suction / Delivery Hose／TIFLEX Hose Heavy Duty Hose Tiflex Hose WS Type
Features
- ・Heavy duty type of WT type. ・Excels in pressure resistance due to reinforcement cord. ・Light in weight and excels in flexibility. ・Suited for delivery and suction use.
Applications

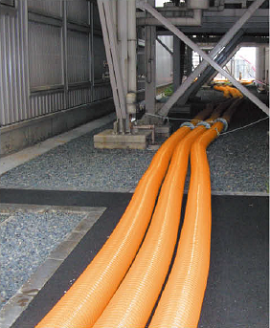

- ・Suction and draining for civil engineering work and etc.
| Fluid | ・ Water ・ Air(excluding compressed air) |
|---|---|
| Temperature | Temperature -10℃～ Temperature 50℃ |
| Function | ・ Delivery (Pumped) ・ Suction (Vacuum) ・ Pressure resistance 5kgf/c㎡ or lower ・ Transparency |
*WS type is right-handed.
Sizes and properties (WS-□)
| Nominal Dia. (Φ) |
I.D. (mm) |
O.D. (mm) |
Pitch (mm) |
Working Pressure (20°C) MPa or less/ [kgf/cm²less] |
Deformation Temp. (-0.1MPa/ -760mmHg) (°C) |
Allowable Bending Radius (mm or more) |
Ref.Weight (g/m) |
Std. Length (m) |
|
|---|---|---|---|---|---|---|---|---|---|
| 25 | 25.4±0.5 | 34.4 | 8.0 | 0.50[5.1] | 70 | 90 | 320 | 50 | |
| 32 | 31.8±0.5 | 42.0 | 9.0 | 0.50[5.1] | 70 | 120 | 440 | ||
| 38 | 38.1±0.5 | 49.5 | 9.0 | 0.50[5.1] | 65 | 150 | 630 | 20･50 | |
| 50 | 50.8±1.0 | 62.8 | 10.0 | 0.50[5.1] | 65 | 200 | 860 | ||
| 65 | 63.5±1.0 | 78.0 | 14.3 | 0.50[5.1] | 60 | 250 | 1,230 | ||
| 75 | 76.0±1.0 | 90.8 | 15.1 | 0.50[5.1] | 60 | 350 | 1,410 | ||
| 100 | 101.6±1.5 | 119.0 | 16.5 | 0.50[5.1] | 60 | 500 | 2,350 | ||
| 125 | 127.0±1.5 | 151.0 | 22.0 | 0.50[5.1] | 55 | 600 | 3,885 | 20･（50) | |
| 150 | 152.4 | ＋2.0 －1.5 |
180.0 | 24.0 | 0.50[5.1] | 55 | 750 | 5,130 | |
| 200 | 203.0 | ＋2.0 －1.5 |
235.0 | 28.0 | 0.50[5.1] | 50 | 1,200 | 7,950 | 10･20 |
| 250 | 254.0 | ＋3.0 －2.0 |
295.0 | 32.0 | 0.25[2.5] | 50 | 1,800 | 11,800 | 5 |
| (300) | 304.8 | ＋3.0 －2.0 |
350.0 | 34.0 | 0.25[2.5] | 45 | 2,100 | 19,000 | |
| (350) | 360.0±3.0 | 407.0 | 37.0 | 0.25[2.5] | 45 | 2,500 | 21,600 | ||
- *Working pressure is different depending on fitting method of metal fixture and Clamps.
- (Thorough care should be observed when fitting at work sites.)
- *( )are custom-made products.
WS type, Outer Socket Caulking
WS type, R-Power Clamps Tightening
●These descriptions can be altered for a reason of improvement without any notification. ●These descriptions shall be as of October 1, 2021.
