Coupling / Cuff／Coupling / Cuff End Cuff for Tiflex Hose A type

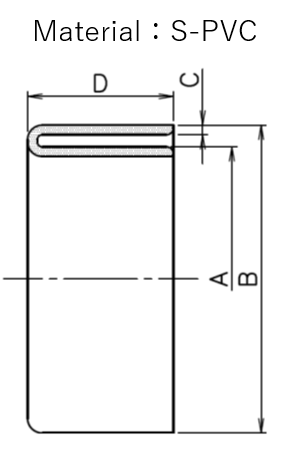

Sizes
| Nominal Dia. (Φ) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Material |
|---|---|---|---|---|---|---|
| 55 | 55 | 64.8 | 1.9 | 30 | ／ | S-PVC |
| 65 | 65 | 74.8 | 1.9 | 30 | ／ | |
| 75 | 74 | 87 | 2.0 | 30 | 18 | PP |
| 90 | 89 | 102 | 2.0 | 33 | 20 | |
| 100 | 99 | 112.8 | 2.4 | 33 | 22 | |
| 125 | 123 | 137 | 2.0 | 33 | 22 | |
| 150 | 149 | 163 | 2.5 | 33 | 23 | |
| 175 | 172 | 188 | 2.5 | 35 | 25 | |
| 200 | 197 | 213 | 2.5 | 35 | 25 | |
| 250 | 249 | 266 | 3.0 | 40 | 30 | |
| 300 | 300 | 315 | 2.5 | 40 | 30 |
●These descriptions can be altered for a reason of improvement without any notification.
●These descriptions shall be as of August 22, 2025.
